com.glneurotech.devices.bioradio.signals.SpO2Signal Class Reference

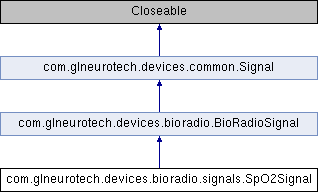

Inheritance diagram for com.glneurotech.devices.bioradio.signals.SpO2Signal:

Public Member Functions
	SpO2Signal (SignalGroup owner, Optional< Integer > bufferSize, PulseOxChannelConfiguration channelConfig) throws IOException
Public Member Functions inherited from com.glneurotech.devices.bioradio.BioRadioSignal
final ChannelConfiguration	getConfiguration ()
final void	setConfiguration (ChannelConfiguration config)
final Signal.ScaleFunction	getScalingDelegate ()
final void	setScalingDelegate (Signal.ScaleFunction value)
	BioRadioSignal (SignalGroup owner, String name, Optional< Integer > bufferSize, ScaleFunction scaleDelegate, double scaledMaxValue, double scaledMinValue, double rawMinValue, double rawMaxValue, int sampleRate, ChannelConfiguration channelConfig) throws IOException
Public Member Functions inherited from com.glneurotech.devices.common.Signal
final SignalGroup	getOwner ()
	Signal (SignalGroup owner, String name, Optional< Integer > bufferSize, ScaleFunction scaleDelegate, double scaledMaxValue, double scaledMinValue, double rawMinValue, double rawMaxValue, int sampleRate) throws IOException
final int	getSamplesPerSecond ()
final void	setSamplesPerSecond (int value)
final Long	getSampleInterval ()
final void	setSampleInterval (Long value)
final double	getMaxValue ()
final void	setMaxValue (double value)
final double	getMinValue ()
final void	setMinValue (double value)
final double	getRawMinValue ()
final void	setRawMinValue (double value)
final double	getRawMaxValue ()
final void	setRawMaxValue (double value)
final String	getName ()
final void	setName (String value)
final String	getUnits ()
final void	setUnits (String value)
final GlntStream	getRawDataStream ()
final void	setRawDataStream (GlntStream value)
final int	getReadingsAvailable ()
final void	setReadingsAvailable (int value)
final boolean	getEnabled ()
final void	setEnabled (boolean value)
ScaleFunction	getScalingDelegate ()
void	setScalingDelegate (ScaleFunction value)
final void	reset ()
final void	addSample (long timeStamp, long rawValue) throws InternalBufferOverflowException
final long	getNextRawValue ()
final double []	getScaledValueArray ()
final double []	getScaledValueArray (int count)
final java.lang.Iterable< Double >	getScaledValues ()
final long []	getRawValueArray (int count)
final java.lang.Iterable< Long >	getRawValues (int count)
final java.lang.Iterable< Long >	getRawValues ()
final Sample	getNextSample ()
final Iterable< Sample >	getSamples ()
final void	close () throws IOException

Static Public Member Functions
static String	getChannelName (PulseOxChannelConfiguration channel)
Static Public Member Functions inherited from com.glneurotech.devices.common.Signal
static double	defaultScaleFunction (long unscaledValue)

Additional Inherited Members
Static Public Attributes inherited from com.glneurotech.devices.bioradio.BioRadioSignal
static final long	RawPadValue = Long.MAX_VALUE
static final int	ScaledPadValue = 9999999
static final int	PulseOxSignalSampleRate = 250

Detailed Description

A signal representing blood oxygen saturation, or SPO2.

Constructor & Destructor Documentation

SpO2Signal()

com.glneurotech.devices.bioradio.signals.SpO2Signal.SpO2Signal	(	SignalGroup	owner,
		Optional< Integer >	bufferSize,
		PulseOxChannelConfiguration	channelConfig
	)		throws IOException

Constructor sets units = "%"

Parameters

owner	Take a SignalGroup value for the owner parametr.
bufferSize	Take an optional integer for the buffer size parameter.
channelConfig	Take a PulseOxChannelConfiguration for the channel configuration parameter.

Exceptions

IOException

Member Function Documentation

getChannelName()

static String com.glneurotech.devices.bioradio.signals.SpO2Signal.getChannelName ( PulseOxChannelConfiguration  channel )

static

Gets the channel name as "SpO2 " + the passed channel's name or external sensor pod id

Parameters

channel

Take a PulseOxChannelConfiguration for the channel parameter.

Returns

String

---

The documentation for this class was generated from the following file:

• BioRadioApi/src/main/java/com/glneurotech/devices/bioradio/signals/SpO2Signal.java
